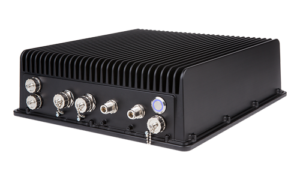

HarshPro™ IP66 Server

Rugged fanless Intel® Xeon® D based server extending data center functionality to the harshest environments

Powerful

Reliable

Passive fanless cooling system and zero moving parts for maximum reliability

Weather

Rugged

Dust and waterproof IP66-rated enclosure is corrosion resistant and built for harsh environments

Versatile

Versatile

Multiple power options available including DC and POE++

HarshPro™ IP66 Server extends the latest server technology to the harshest environments with a rugged design based on the Intel Xeon D processors. From USD $4,990.

The dust and waterproof IP66 rated enclosure provides protection against the toughest environments. The fanless cooling design and SSD storage means there are zero moving parts, resulting in reduced maintenance and improved reliability. The industrial grade Intel Xeon D processor offers a 10-year lifespan at 100% usage.

HarshPro Server

Unlike most fanless servers available on the market, the HarshPro IP66 is highly expandable, offering 4 DIMM slots and 7 PCIe M.2 slots for storage, GPU cards, and additional communication interfaces.

With high speed NVMe SSDs and communication interfaces, large amounts of memory, and a multi core processor, the server is optimized for cloud native, localized or hybrid cloud functionality and application containerization.

The server comes with a baseboard management controller (BMC) enabling headless operation and remote management down to the UEFI/BIOS level.  The server TPM hardware security and UEFI secure boot features protect equipment deployed in the field.

HarshPro IP66 Server

A low maintenance, high reliability design and long lifespan ensure maximum hardware uptime. Remote management capability eliminates the need for onsite IT support.  These two factors make the server perfect for mission critical applications, remote deployments, or deployments at scale.

HarshPro
Secure, automated and private positioning

Server Class Processors

Industrial grade Intel® Xeon® D processor, high core counts, hyperthreading, virtualization and ECC enabled memory support

Simplified deployment

IP66 Enclosure and Connectors

IP66 anodized aluminum enclosure is dust and waterproof, and corrosion resistant

'Admin-lite' design

Designed for Harsh Areas

Engineered with wide temperature range components, memory and expansion cards

Auditable data for workplace accidents

Long-lasting Reliability

Passive cooling, fanless design and SSD storage means zero moving parts for improved reliability. Intel® Xeon® D 10-year lifespan offers product longevity

Mesh Network

Multiple Power Options

Power through standard 12-volt DC input or through Power over Ethernet (PoE)

Public/Private Cloud Support

Remote Management Ready

Supports functionality commonly used in data centers including automated provisioning and remote management which reduces the need for on-site management. Can work standalone or clustered in remote locations

Open and extensible software platform

Best in Class Partners

Built with market-trusted American Megatrend’s APTIO-V UEFI/BIOS and MegaRAC SP-X BMC firmware

Bundled software and hardware with end-to-end support

Optimized for Cloud

High core count processor, high speed NVMe SSD storage and large amounts of memory enable distributed cloud functionality and application containerization wherever you need it

'Headless' administration

‘Headless’ Admin

Baseboard management controller (BMC) supports technologies including IPMI, PXE, Redfish® and KVM over IP enabling remote administration down to the UEFI/BIOS level

Dimensions382mm (L) x 352mm (W) x 112mm (H)
CPU Chip SetIntel® Xeon® D-1539
Memory Slots4 x RDIMM (up to 32 GB per slot) or UDIMM (up to 16 GB per slot)
288 pins (128 GB max)
Expansion Slots6 x M.2 M-key, 1 x M.2 E-key
Connectivity2 x RJ45 1000Base-T, 2 x SFP+ (up to 10G)
Operating Temperature-20ºC to 50ºC
Input Voltage12VDC (with reverse polarity protection)
Power ConsumptionTypical: 80 watts / Maximum: 140 watts
POE++PD71W x 2
Specifications subject to change
