HarshPro™ IP20 Server

Rugged rack mount server designed for harsh environments

Designed for Harsh Environments

Designed for wide operating temperature and humidity ranges, suitable for outdoor and non-airconditioned environments

Remote Management Ready

Supports popular remote management technologies down to the UEFI/BIOS level

Flexible

Offers a high degree of configurability for processors, GPU cards, storage, communication interfaces, enclosures and power supplies

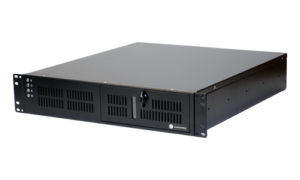

HarshPro™ IP20 is a rugged Intel^® Xeon^® D based server that comes in an industry standard 19” 2U rack chassis. From USD $3,190.

Designed to withstand harsh environments, the HarshPro IP20 brings server class compute and high-speed connectivity to the edge where environmental controls are not in place. The HarshPro IP20, equivalent to an ASHRAE class A4 rated server, is perfectly suited for tropical/warm temperature data centers that rely on economizer or free cooling, as well being installed in-vehicle or field equipment racks.

A large number of expansion slots and processor options provide a high degree of flexibility, enabling you to tailor the HarshPro IP20 to meet your needs. The server TPM Hardware security and UEFI secure boot features protect equipment deployed in the field.

The server is optimized for cloud native, localized cloud functionality and application containerization. It is designed to work standalone or clustered in remote and harsh conditions.

Server Class Processors

Industrial-grade Intel^® Xeon^® D processor, offers high core counts, hyperthreading, virtualization, ECC enabled memory support, and a 10-year lifespan at 100% usage. Select processor based on requirements.

Rugged

Equivalent to an ASHRAE class A4 rated server, designed to operate in wide operating temperature and humidity ranges

Secure

Multiple security features including a trusted platform module (TPM) and UEFI secure boot

Built for Any Environment

Suitable for use in warm temperature data centers, non air-conditioned equipment rooms, in-vehicle, and field equipment racks

‘Headless’ Admin

Baseboard management controller (BMC) supports technologies like IPMI, PXE, Redfish®, and KVM over IP enabling remote administration down to the UEFI/BIOS level

Remote Management Ready

Supports functionality commonly used in data centers including automated provisioning and remote management which reduces the need for on-site management. Can work standalone or clustered in remote locations

Highly Expandable

Multiple PCIe M.2 slots, enabling additional storage, AI/ML GPU cards and industrial automation interface cards

Optimized for Cloud

High core count processors, high speed NVMe SSD storage, and large amounts of memory enable distributed cloud functionality and application containerization wherever you need it

Best in Class Partners

Built with market-trusted American Megatrend’s APTIO-V UEFI/BIOS and MegaRAC SP-X BMC firmware

Dimensions	19″ 2U Form Factor 482mm (L) x 480mm (W) x 88mm (H)
System Chipset CPU	Intel® Xeon® D-1539 (configurable)
Memory Slots	4 x RDIMM (up to 32 GB per slot) or UDIMM (up to 16 GB per slot) 288 pins (128 GB max)
Expansion Slots	6 x M.2 M-key, 1 x M.2 E-key
Connectivity	2 x RJ45 1000Base-T, 2 x SFP+ (up to 10G)
Trusted Platform Module	TPM 2.0, Infineon
Operating Temperature	-20ºC to 50ºC
Power Supply	110/220VAC input
Input Power	50/60Hz
POE++	PD71W x 2
